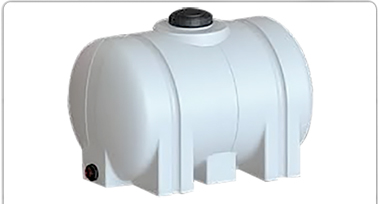

DEN HARTOG HORIZONTAL LEG TANKS

* CLICK ON PART NUMBER BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

Part No.	Alpine Pickup	Capacity	Weight	Dimensions	Lid	Fitting
FS0035-18	$90.00	35 Gallon	16	18 x 34	5″	1″
FS0065-24	$175.00	65 Gallon	33	24 x 39	5″	1″
FS0125-32	$270.00	125 Gallon	52	32 x 40	8″	1″
FS0165-32	$330.00	165 Gallon	70	32 x 54	8″	1″
FS0225-38	$380.00	225 Gallon	85	38 x 52	8″	2″
FS0325-38	$460.00	325 Gallon	106	38 x 72	12″	2″
FS0335-44	$470.00	335 Gallon	116	44 x 56	16″	2″
FS0535-48	$605.00	535 Gallon	160	48 x 78	16″	2″
FS0735-48	$865.00	735 Gal (Hoops Req.)	250	48 x 103	16″	2″
FS1005-48	$1,145.00	1005 Gal (Hoops Req.)	342	48 x 130	16″	2″

Part No.	Alpine Pickup	Capacity	Weight	Dimensions	Lid	Fitting
FS0035-18†	$90.00	35 Gallon	16	18 x 34	5″	1″
FS0065-24†	$175.00	65 Gallon	33	24 x 39	5″	1″
FS0125-32	$270.00	125 Gallon	52	32 x 40	8″	1″
FS0165-32	$330.00	165 Gallon	70	32 x 54	8″	1″
FS0225-38	$380.00	225 Gallon	85	38 x 52	8″	2″
FS0325-38	$460.00	325 Gallon	106	38 x 72	12″	2″
FS0335-44	$470.00	335 Gallon	116	44 x 56	16″	2″
FS0535-48	$605.00	535 Gallon	160	48 x 78	16″	2″
FS0735-48	$865.00	735 Gal (Hoops Req.)	250	48 x 103	16″	2″
FS1005-48	$1,145.00	1005 Gal (Hoops Req.)	342	48 x 130	16″	2″

DEN HARTOG SECURING HOOPS

* CLICK ON PART NUMBER BELOW TO VIEW PDF DRAWING *

† INDICATES CAN BE SHIPPED VIA UPS/FED EX

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

Part No.	Alpine Pickup	Weight	Dimensions	Kit
FS0035-SBPF†	$30.00 \| PAIR	8	2 x 47.5	35 Gallon Kit Silver
FS0065-SBPF†	$40.00 \| PAIR	12	2 x 67	65 Gallon Kit Silver
FS125/165-SBPF†	$45.00 \| PAIR	16	2.5 x 84.5	125/165 Gallon Kit Silver
FS225/325-SBPF†	$55.00 \| PAIR	19	2.5 x 99.5	225/325 Gallon Kit Silver
FS0335-SBPF†	$65.00 \| PAIR	34	2.75 x 116.5	335 Gallon Kit Silver
FS0535-SBPF†	$70.00 \| PAIR	36	2.75 x 125	535 Gallon Kit Silver
FS048-HP	$185.00 \| SET/3	–	1.315 OD	735 Gal Hoops
FS1005-HP	$240.00 \| SET/4	–	1.315 OD	1005 Gal Hoops

Part No.	Alpine Pickup	Weight	Dimensions	Kit
FS0035-SBPF†	$30.00 \| PAIR	8	2 x 47.5	35 Gallon Kit Silver
FS0065-SBPF†	$40.00 \| PAIR	12	2 x 67	65 Gallon Kit Silver
FS125-165-SBPF†	$45.00 \| PAIR	16	2.5 x 84.5	125/165 Gallon Kit Silver
FS225-325-SBPF†	$55.00 \| PAIR	19	2.5 x 99.5	225/325 Gallon Kit Silver
FS0335-SBPF†	$65.00 \| PAIR	34	2.75 x 116.5	335 Gallon Kit Silver
FS0535-SBPF†	$70.00 \| PAIR	36	2.75 x 125	535 Gallon Kit Silver
FS048-HP	$185.00 \| SET/3	-	1.315 OD	735 Gal Hoops
FS1005-HP	$240.00 \| SET/4	-	1.315 OD	1005 Gal Hoops

* CLICK ON PART NUMBER BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

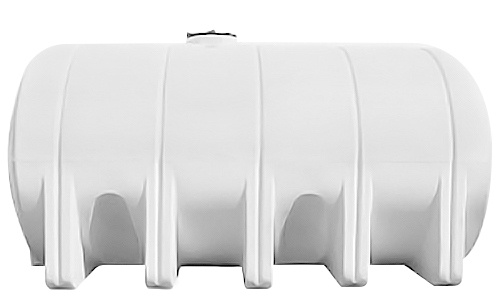

PART NO.	GALLONS	WIDTH	HEIGHT	LENGTH	LID	OUT	COLOR	SPECIFIC GRAVITY
41879	5,025	92	96	190	16	3	WHITE	1.5/12.5#
41881	5,025	92	96	190	16	3	BLUE	1.9/15.8#
42602	5,025	92	96	190	16	3	BLACK	1.9/15.8#

PART NO.	GALLONS	WIDTH	HEIGHT	LENGTH	LID	OUT	COLOR	SPECIFIC GRAVITY
41879	5,025	92	96	190	16	3	WHITE	1.5/12.5#
41881	5,025	92	96	190	16	3	BLUE	1.9/15.8#
42602	5,025	92	96	190	16	3	BLACK	1.9/15.8#

* CLICK ON PART NUMBER BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.	ALPINE PICKUP	FOB HANFORD, CA	TANK SIZE
62384			5,025

PART NO.	ALPINE PICKUP	FOB HANFORD, CA	TANK SIZE
63284			5,025
